Data / Data Edit

Introduction

Clicking on the Data / Data Edit menu displays the Data Edit page.

The Data Edit page allows operators of the system to view and edit point data reports in the database.

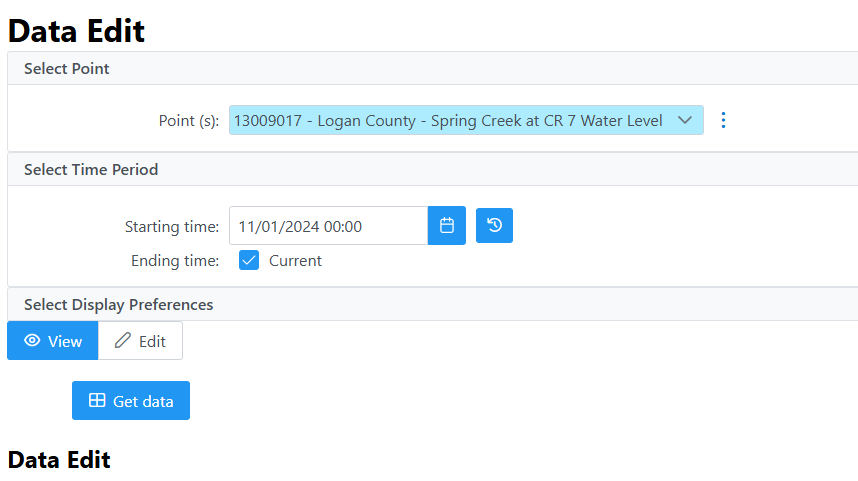

data edit

Data Edit Point and Time Period Selection

Select the point and time period to edit.

Data Label	Description
*Point*	Select point to poll from the pick list. Points are listed by *point numid* and *point name*. Click the to the right of the list to select sort criteria: name or point_numid
*Starting Time*	Select the starting time for the data edit time period. Click to set the starting time to start of day for ending time. Note: the starting time must be before the ending time.
*Ending Time*	Select the ending time for the data edit time period. Select *Current* to set the ending time to the current time. Unselecting *Current* enables selection of date.

The data edit page is best used with a restricted time period. If more data is requested than is needed, unnecessary page scrolling is required to view the data of interest. Long delays may occur as the browser has to manage the underlying data edit controls.

Data List

Click Get data to retrieve data for the selected point and time period.

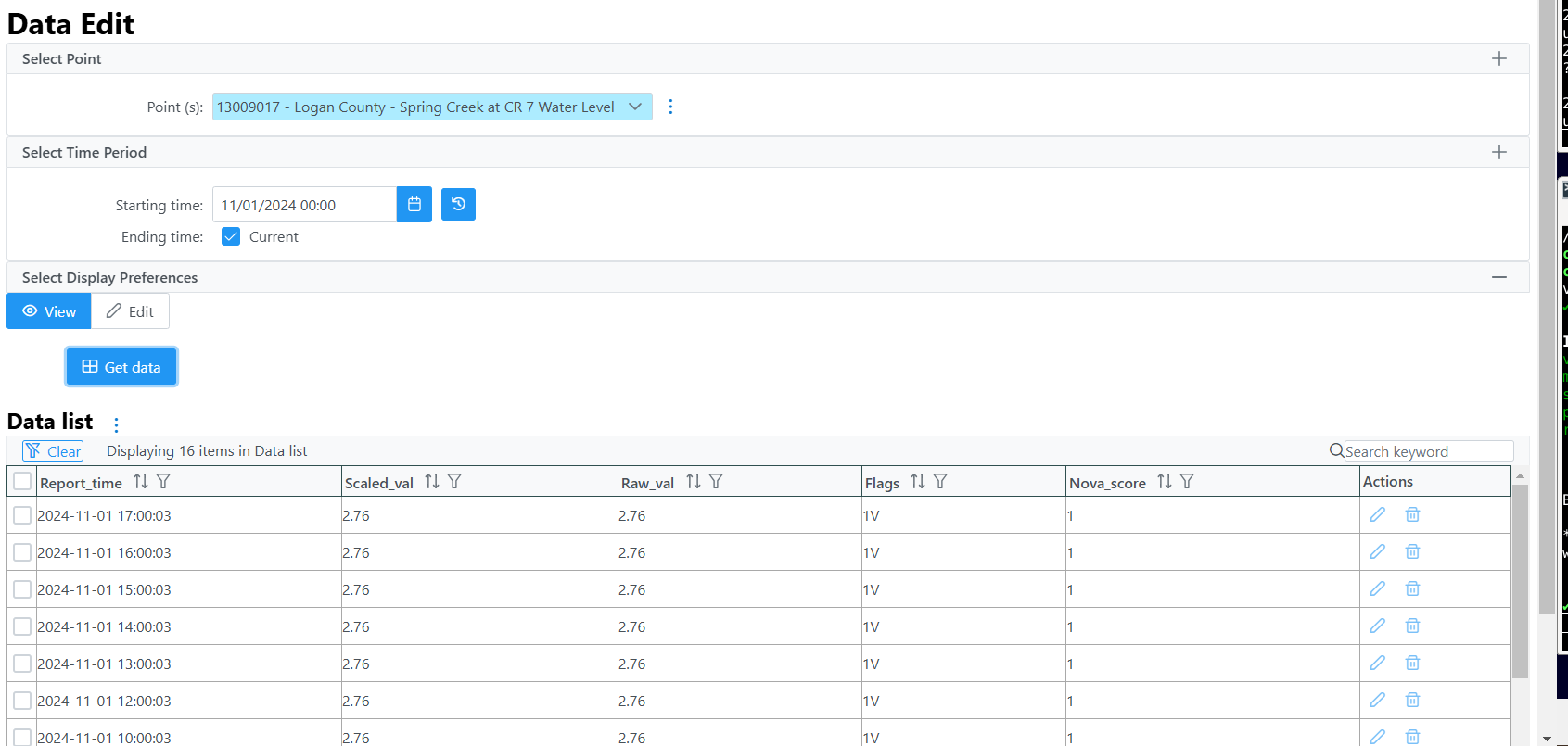

data edit

Data List (see full-size image)

All columns are able to be sorted and filtered.

Edit Data Record

Click on the pencil button on the line of data to edit. To edit multiple data records simultaneously, select the checkbox of the records and then click the pencil button on any of the records. The following popup dialog appears.

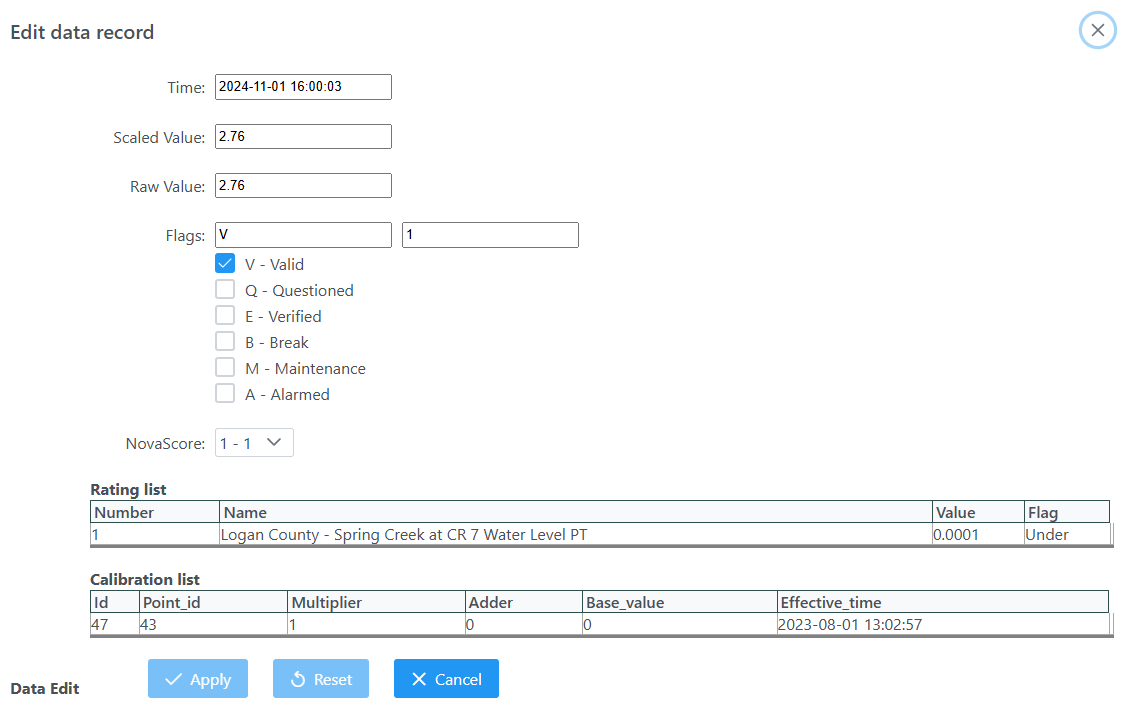

data edit

Data Edit Popup (see full-size image)

Data Label	Description
*Time*	Enter the time of the data report. The data report time must be unique for the point. It is not possible to store more than one data report in the database for a point with the same time. The time must differ by at least one second.
*Scaled Value*	Enter the scaled value for the data report. The scaled value is computed from the raw value using the assigned calibration record when the raw value is received and filed by the data collection software. Changing this value automatically updates the raw value.
*Raw Value*	Enter the scaled value for the data report. The scaled value is computed from the raw value using the assigned calibration record when the raw value is received and filed by the data collection software. The scaled value is automatically computed from raw value (recalibrate) using the selected calibration record.
*Flags*	Standard flags assembled from check boxes; field cannot be directly modified.
*Valid*	Data report has been validated by data checking parameters.
*Questioned*	Data report has been questioned by data checking parameters.
*Alarmed*	Data report has met alarm criteria for an alarm trigger.
*Break*	Data report set as the start of a new continuous record by data checking parameters.
*Maintenance*	Data report flagged as a maintenance report by an operator.
*Verified*	Data report verified by an operator and cannot be changed by revalidation.
*Nova Score*	Select nova score from pick list. Nova score 1 is assigned by default. The nova score values are used to highlight point data values in maps, plots and reports.
	The rating, flags, and assign fields only appear if the point has rating tables assigned. The data editor cannot be used to assign ratings, see the Rating Assign section. Each point can have up to 5 ratings assigned. The edit field documented below are repeated for each rating assignment starting at 1.
*Rating1*	The rating assignment is used to compute the rating value from scaled data value.
*Calibration*	The calibration is used to compute the scaled data value from raw data value.
