Data / View Maps
Warning
Map functionality is still under development, as is this page of documention.
Introduction
Maps can be created that display point data. Clicking on the Data / View Maps menu displays the View Maps page.
This page page is used to query the database for data from a predefined set of map points. The data returned from the database query are superimposed upon a background map image, incorporated in an interactive map, or combined with basic shapes to create a diagram.
Click the Display button to retrieve the data specified in the input fields organized under the Select Map, Select Display Time and Interval, Display Options headings. The web browser will remember the map data request parameters and restore them the next time the page is selected.
Trilynx's Operator software and other tools also use maps that can be zoomed and scrolled.

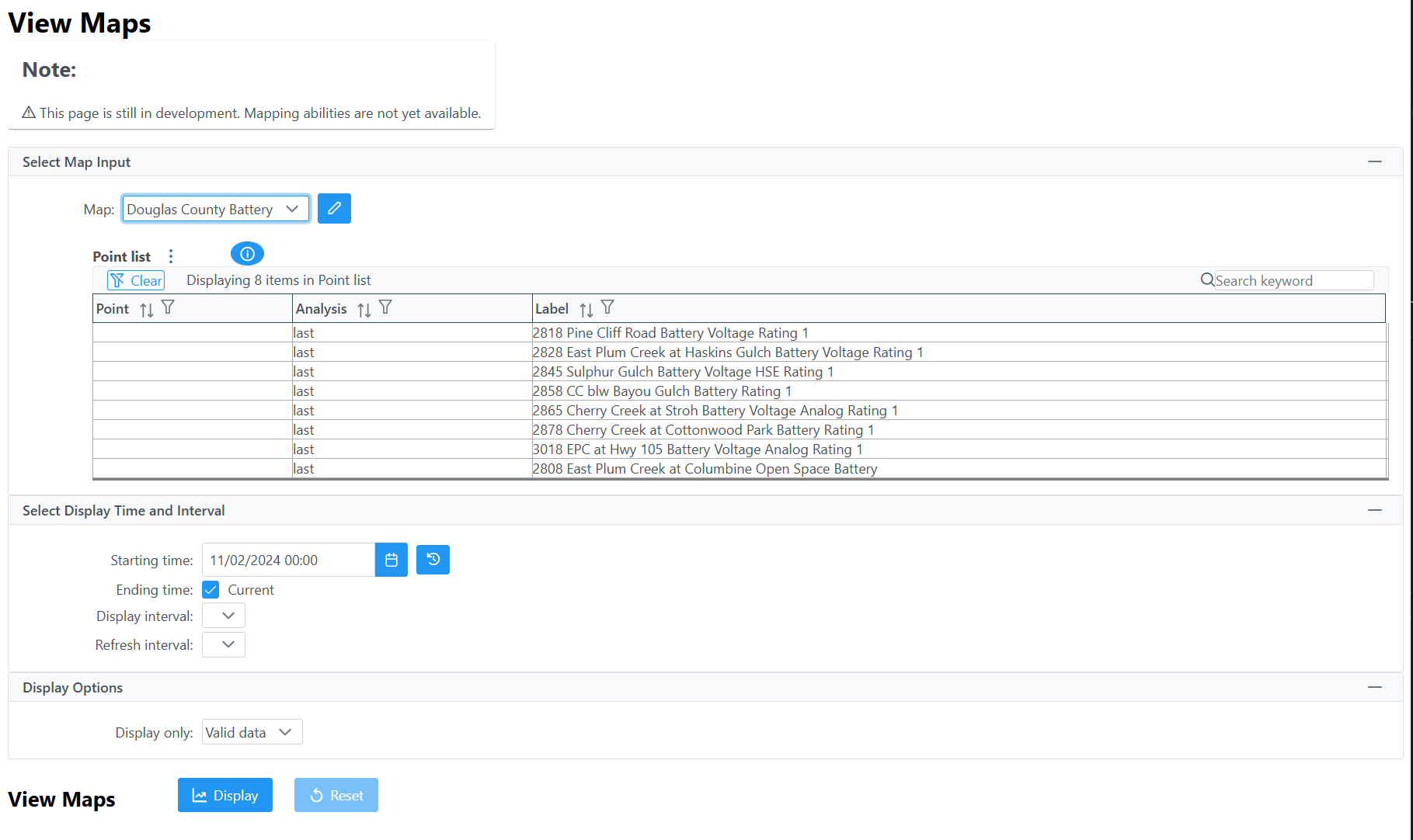

View Maps (see full-size image)
Select Map Input
Select the map to query. These maps are defined using the Product Definitions / Maps page.
The Point List displays the map point and parameters defined for this map data request. This list cannot be changed at this point, but is displayed as a convenience. Map point parameters define the point data analysis and map options.

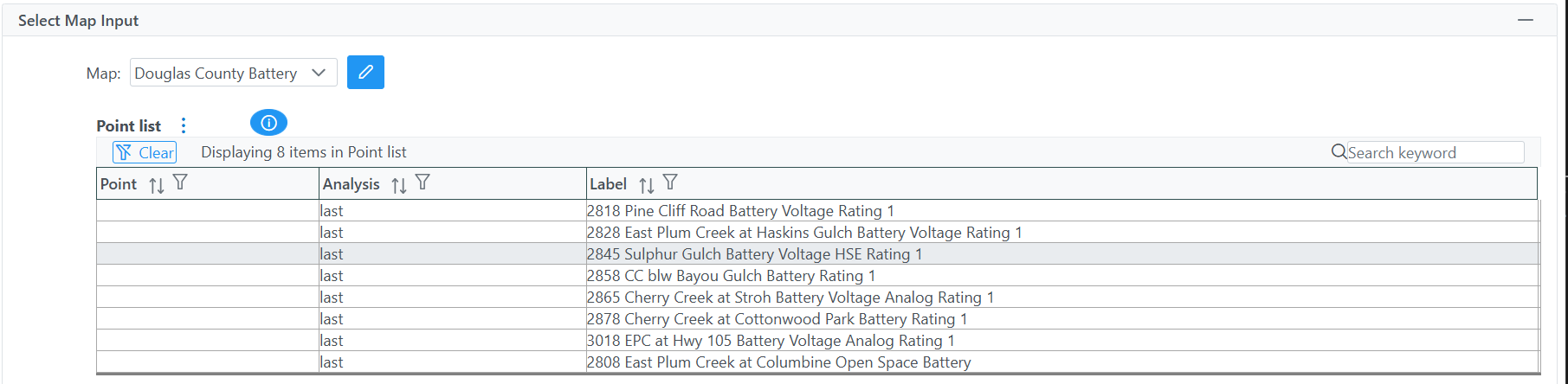

Map Input, Point Override Set to False (see full-size image)
| Data Label | Description |
|---|---|
| Map | Select the map to display. As a convenience, to edit the map definition, click the  button. |
| Point list | The point list is a fixed point or point list and is provided as information |
Select Display Time and Interval
Select the period of record to query.

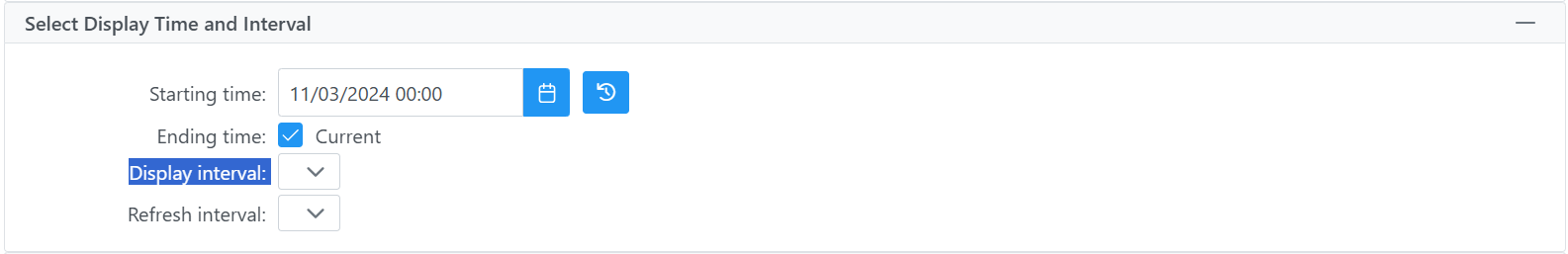

Select Display Time and Interval (see full-size image)
| Data Label | Description |
|---|---|
| Ending Time | Select the ending time for the report display. Select Current checkbox to continuously update the ending time to the next even 15 minutes past the current time. The Map Data Request page does not use a Starting Time. The starting time is computed by subtracting the display interval from the Ending Time. |
| Display Interval | Select the time interval for the map data analysis. The time interval is used to compute the start time for the data analysis from the end time. |
| Refresh Interval | Select the interval to automatically refresh the map data display. This field is only available when the Ending Time is set to Current . |
Select Data Analysis
These fields are hidden when the display interval is set to Use Map Intervals.

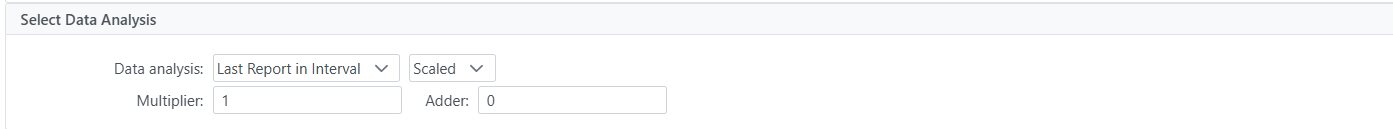

Select Data Analysis (see full-size image)
| Data Label | Description |
|---|---|
| Data Analysis | Select the data analysis for the map data display. See the Data Analysis appendix for a description of the analysis types. Use default analysis will do the default analysis for the point type. |
| Data type | Select the type of data displayed: Scaled: Scaled or analysis value Raw: Raw data value Score: Nova score value Rating1-Rating5: Rating value 1 - 5 Date: Date of data report Time: Time of day of data report DateTime: Date and time of data report |
| Analysis Interval | The Rainfall Intensity data analysis requires an analysis interval. |
| Multiplier | Multiply the data analysis computed value by this constant. |
| Adder | Add this constant to the data analysis computed value. |
Display Options
Select display options.
Select Display Options (see full-size image)
| Data Label | Description |
|---|---|
| Display Only | Select the display data restrictions: All data: All data, valid or questioned Valid data: Data reports with a valid flag. A valid flag is automatically set by the system when data checking criteria is met. Verified data: Data reports with a verified flag. A verified flag is set by an operator using the data editor to certify that the data is valid. Maintenance data: Data reports with a maintenance flag. A maintenance flag is manually set by an operator to indicate test data not used for public viewing. The maintenance flag is also set when a point of station is out of service or when the data report received has the test flag set. |
Map Display
Clicking the
button displays the map data.
Info
More documentation which includes plotting examples is coming! The following sections will be completed.
