Data / View Tables

Introduction

Clicking on the Data / View Tables menu displays the View Tables page.

This page displays point data in a tabular format.

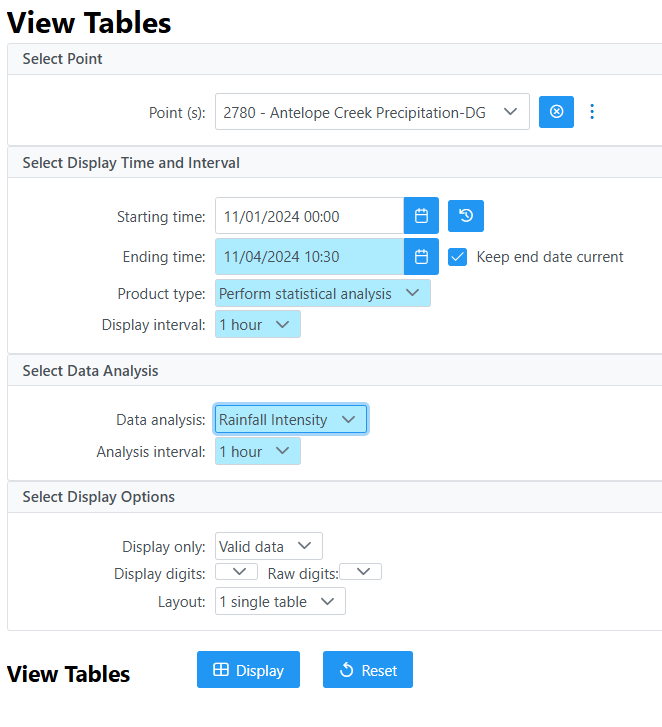

View Tables (see full-size image)

Select Point(s)

A single point or multiple points can be queried.

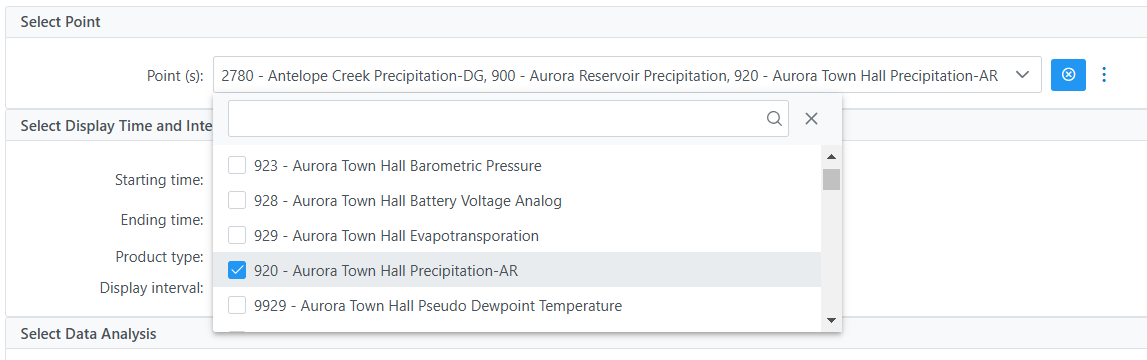

Point List (see full-size image)

Data Label	Description
Point(s)	Select the point(s) to display from the pick list. As points are selected, a comma separated list is displayed in the dropdown. Clicking the button deselects all points. Clicking the button displays a menu allowing sorting the list by name or point_numid.

Select Display Time and Interval

Select the product type and time period to query.

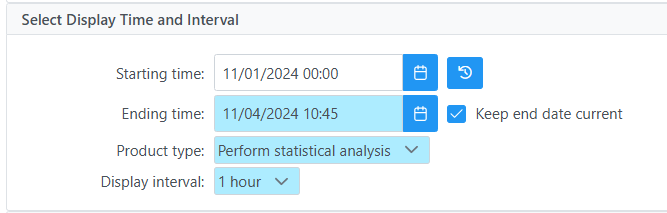

Select Display Time and Interval (see full-size image)

Data Label	Description
Starting Time	Select the starting time for the data edit time period. Click to set the starting time to start of day for ending time. Note: the starting time must be before the ending time.
Ending Time	Select the ending time for the data display. Select Current checkbox to continuously update the ending time to the next even 15 minutes past the current time.
Product Type	Select Show Data Reports to display all data reports between the starting and ending time. Select Perform statistical analysis to perform analysis - this enables the Display Interval and the Select Data Analysis section.
Display Interval	Select the time interval for the data display.

Select Data Analysis

Select the data analysis to perform on the data. This is not displayed when Product Type is set to Show Data Reports.

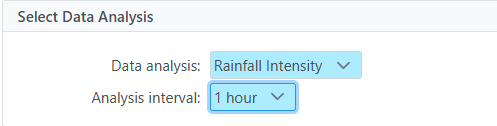

Select Data Analysis (see full-size image)

Data Label	Description
Data Analysis	Select the data analysis for the data display. See the data analysis appendix for a description of the analysis types.
Analysis Interval	The Rainfall Intensity data analysis requires an analysis interval.

Display Options

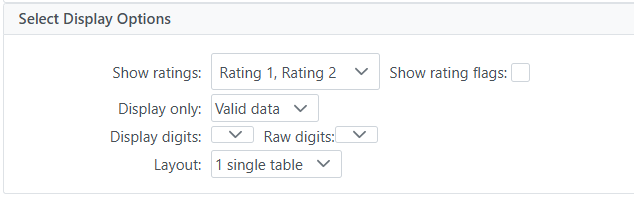

Select Display Options (see full-size image)

Data Label	Description
Show Ratings	Select one or more ratings (Rating 1 - Rating 5) to display in this multiple pick list. (only enabled when Product type is set to Show data reports)
Show Rating Flags	Select true to display rating flags as well as the rating data values.
Display Only	Select the display data restrictions: All data: All data, valid or questioned Valid data: Data reports with a valid flag. A valid flag is automatically set by the system when data checking criteria is met. Verified data: Data reports with a verified flag. A verified flag is set by an operator using the data editor to certify that the data is valid. Maintenance data: Data reports with a maintenance flag. A maintenance flag is manually set by an operator to indicate test data not used for public viewing. The maintenance flag is also set when a point of station is out of service or when the data report received has the test flag set.
Display digits	Select a number of decimal digits to override the default.
Raw digits	Select a number of decimal digits to override the default.
Layout	Select whether the data should be display in a single table or multiple tables. If a single table is selected, data is collated into one table, meaning that on column for time/date is used and the table cells will be empty is no data is available for every time/date combination.

Tabular Data Display

Clicking the button displays the data in tabular form. If no data is available, the Results section displays a message such as, "No data reports available for the above settings."

Display a single table

Example of a single table Layout request:

Single Table Output (see full-size image)

Display multiple tables

Example of a multiple table Layout request:

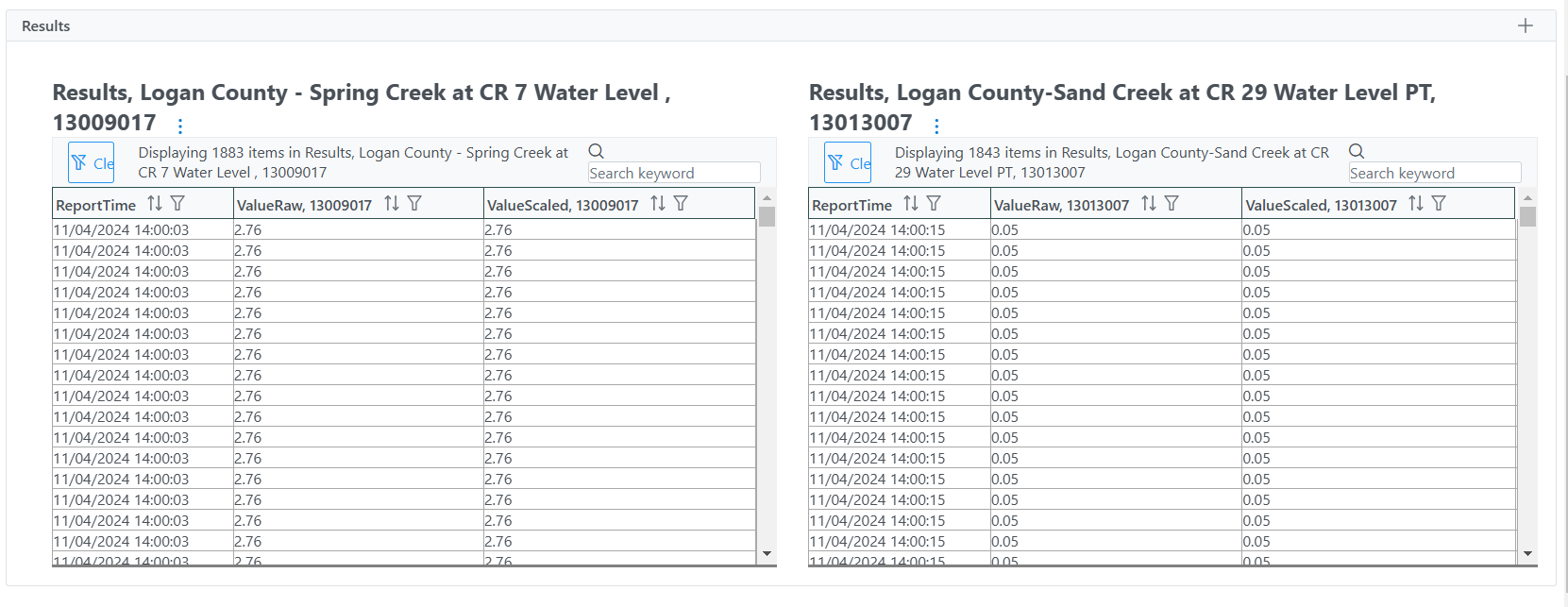

Multiple Table Output (see full-size image)
