System / Check Database

Introduction

Clicking on the System / Check Database menu displays potential data base problems. These problems are organized by station.

Database Problems

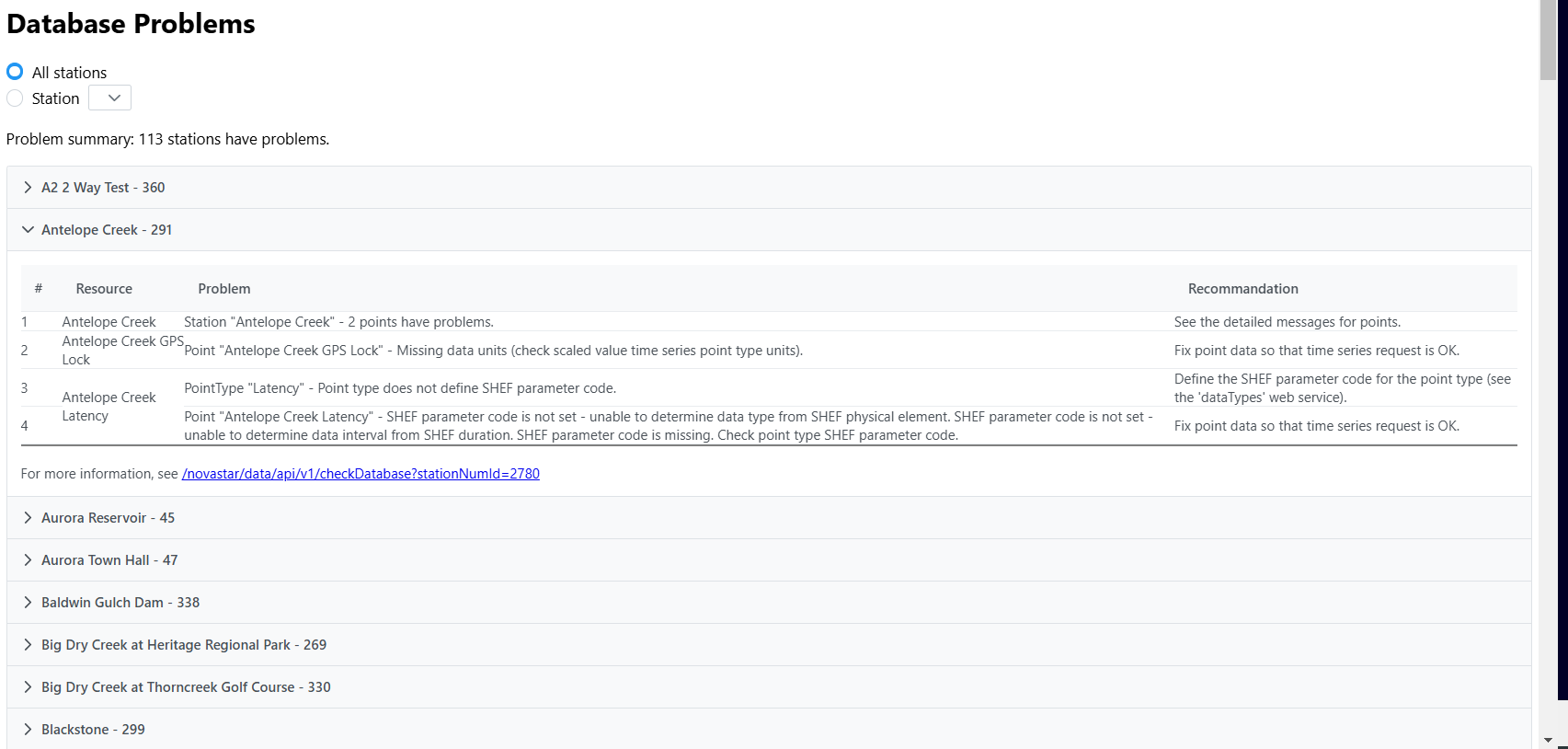

The following image illustrates the System / Check Database page.

Check database (see full-size image)

Each collapsible tab is labeled with a station name and station numid.

View the potential issues with each station by clicking the tab. The potential problems are numbered and indicate the resource of the problem, a short description of the problem, and a recommendation.

A link is provided following the table of problems for the individual station to retrieve a more detailed output about that station. In the above example, see below the table, For more information, see /novastar/data/api/v1/checkDatabase?stationNumId=2780. Clicking this will open a new tab in the browser with the appropriate data web services url.
