Introduction

The Administrator System / Configuration data includes the following:

  • built-in properties that configure the system
  • configuration properties and command options for system processes
  • system-specific properties
  • properties unique to this node if a system has multiple nodes

Configuration List

The System / Configuration List menu item displays the system configuration list.

configurations

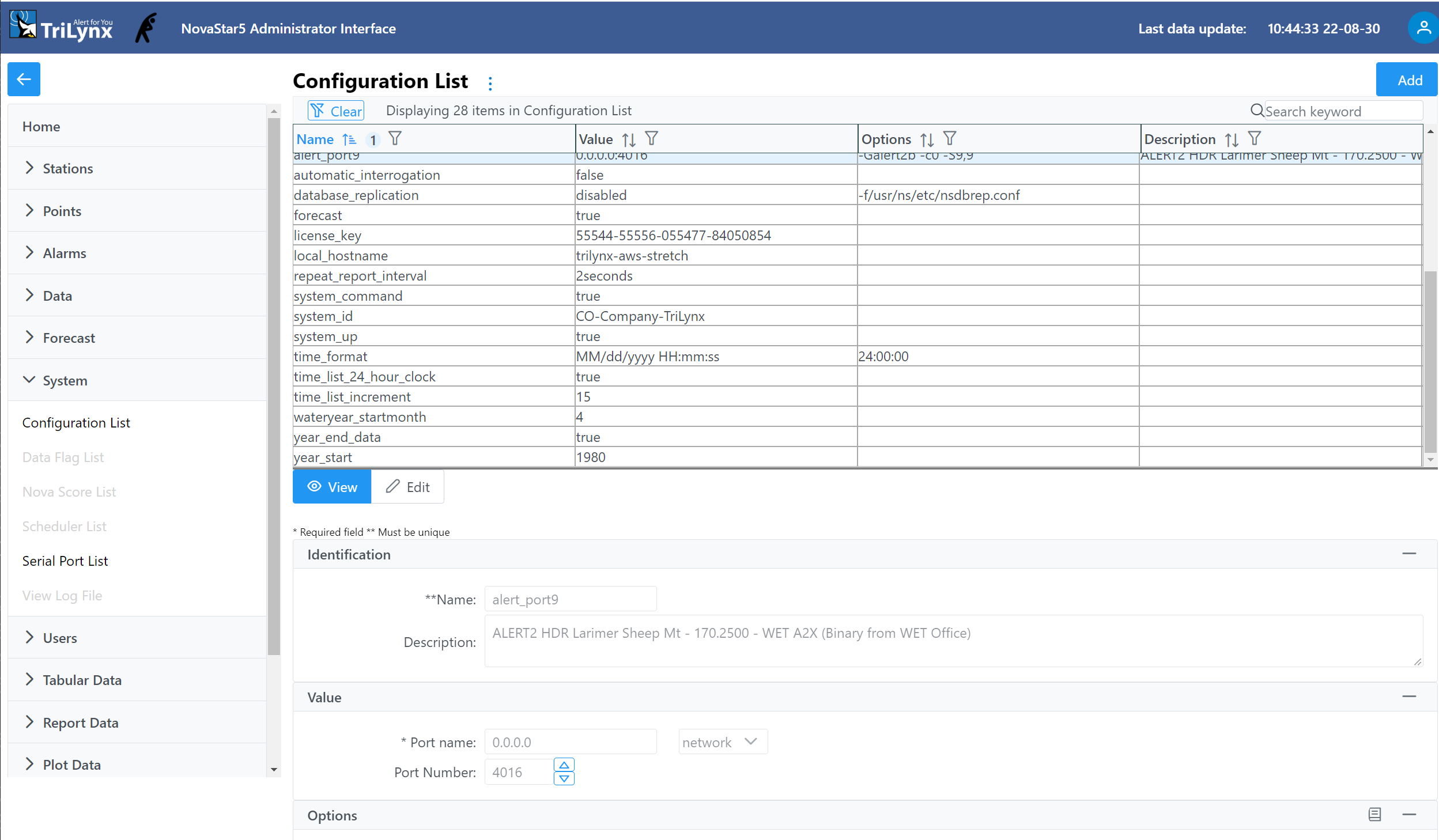

Configuration List (see full-size image)

The configurations page conforms to a layout similar to many data types which includes a list of data items. See List Features and Application Functionality for more information detailing page navigation; adding, copying and deleting configurations; and modifying existing configurations.

Configuration List Properties

The following table lists NovaStar configuration properties. A property may include options if the property is associated with a system process.

Descriptive Name Property Name                                                       Description Default
50386_data_collection 50386 data collection
50386_port 50386 port
alarms_enable Alarms enable
alert_data_collection ALERT data collection
Data Collection Source alert_port# Configuration for nsrecdata program running on a port, which listens for ALERT, ALERT2, simple comma-separated-value data, and custom NovaStar specification. To enable running a program, define a property with a name starting with alert_port and ending with a unique integer, typically 1, 2, etc. for systems with less than 10 data collection sources (line numbers) or 01, 02, etc for systems with > 10 data collection sources. This property includes options for the nsrecdata program. The value should be of the form:
  • /dev/... - path to serial port device if decoding data from a serial port
  • 1.2.3.4:port# - IP address and port number if decoding data from an internet address, where a specific IP address can be used, for example if listening to a repeater or Digi devide, or 0.0.0.0 when listing to direct radio transmissions from multiple stations
 If not defined, nsrecdata data collection programs do not run.
alerttalk3 ALERTTalk3 driver
alerttalk3_node ALERTTalk3 node
last_report_interval Data last report search interval
check_interval_factor Data no report interval multiplier
repeat_report_interval Data report repeat interval
database_node Database node
database_state_node Database node state
Database Replication Enabled database_replication Whether database replication is enabled, true or false. false
database_replication_check Database replication check
database_replication_year_start Database replication year start
database_update_wait Database update wait
forecast Forecast
license_key License key
java_heap_size Java heap size
local_hostname Local hostname
map_display Map display driver
map_display_node Map display node
netcat Network pipe driver
netcat_port Network pipe port
automatic_interrogation Station polling
plot_point_limit Plot point limit
poll_port Station polling port
siren Siren driver
siren_node Siren port
system_command System command driver
System Identifier system_id System identifier, used by TriLynx to uniquely define systems, for example CO-County-Larimer.
System Name system_name System name, used in output products.
system_up System start state
System Time Format time_format Time format for output, using syntax ....?
time_list_increment Time increment in time selection lists
time_list_24_hour_clock Time increment in time selection lists
wateryear_startmonth Water year start month
year_end_data Year end expansion for data partitions
System Year Start year_start Year for start of data tables, used by software to confirm that data tables have been created. 1980

alert_port Property

alert_port Value

Value Description
/dev/... Path to serial port, when decoding data from a serial port connection.
0.0.0.0:port#

The alert_port# property can be defined multiple times as long as the port counter is unique. The following options can be configured for the nsrecdata program that runs to collect data.

alert_port Options

Option Description                         Default
0.0.0.0:port#
